Wax Injection & Assembly in Investment Casting
Wax injection and assembly is a key step in the investment casting process. In this stage, we create precise wax patterns and assemble them into clusters. These patterns define the final shape of the metal parts. As a result, this step directly affects accuracy, surface quality, and production efficiency.
This step is part of our Investment Casting Process.
What is Wax Injection in Investment Casting?
Wax injection creates an exact replica of the final part in the investment casting process.
First, we heat the wax to a controlled temperature. Then, we inject it into a precision mold under pressure. After that, the wax cools and solidifies quickly.
As a result, the wax pattern captures fine details, including complex geometries and internal features. In addition, it ensures high dimensional accuracy.
- We control temperature and pressure during injection
- The wax cools and solidifies inside the mold
- This process supports high repeatability in batch production
Wax Assembly Process in Investment Casting
After we produce the wax patterns, we assemble them into a tree structure (cluster).
First, we attach each pattern to a central runner. Next, we design gates and sprues to guide the metal flow. Finally, we complete the full assembly for casting.
- We connect multiple wax patterns to one runner
- We design gates and sprues for smooth metal flow
- This setup allows us to cast multiple parts at the same time
Therefore, wax assembly improves efficiency and reduces cost per part.
Why Wax Injection is Important in Investment Casting
Wax injection and assembly directly affect the final casting quality.
- It improves dimensional accuracy
- It ensures consistent results across batches
- It reduces casting defects
- It increases production efficiency
Without stable wax patterns, the final casting cannot meet quality requirements. As a result, process control at this stage is critical.
Why It Matters
Wax injection and assembly plays a critical role in the final casting quality.
- It improves dimensional accuracy
- It ensures consistent results
- It reduces defects during casting
- It increases production efficiency
Without a stable wax pattern, the final casting cannot meet quality requirements.
Our Advantages in Wax Injection
We use advanced equipment and strict process control to ensure stable and high-quality wax patterns.
High-Efficiency Injection Equipment

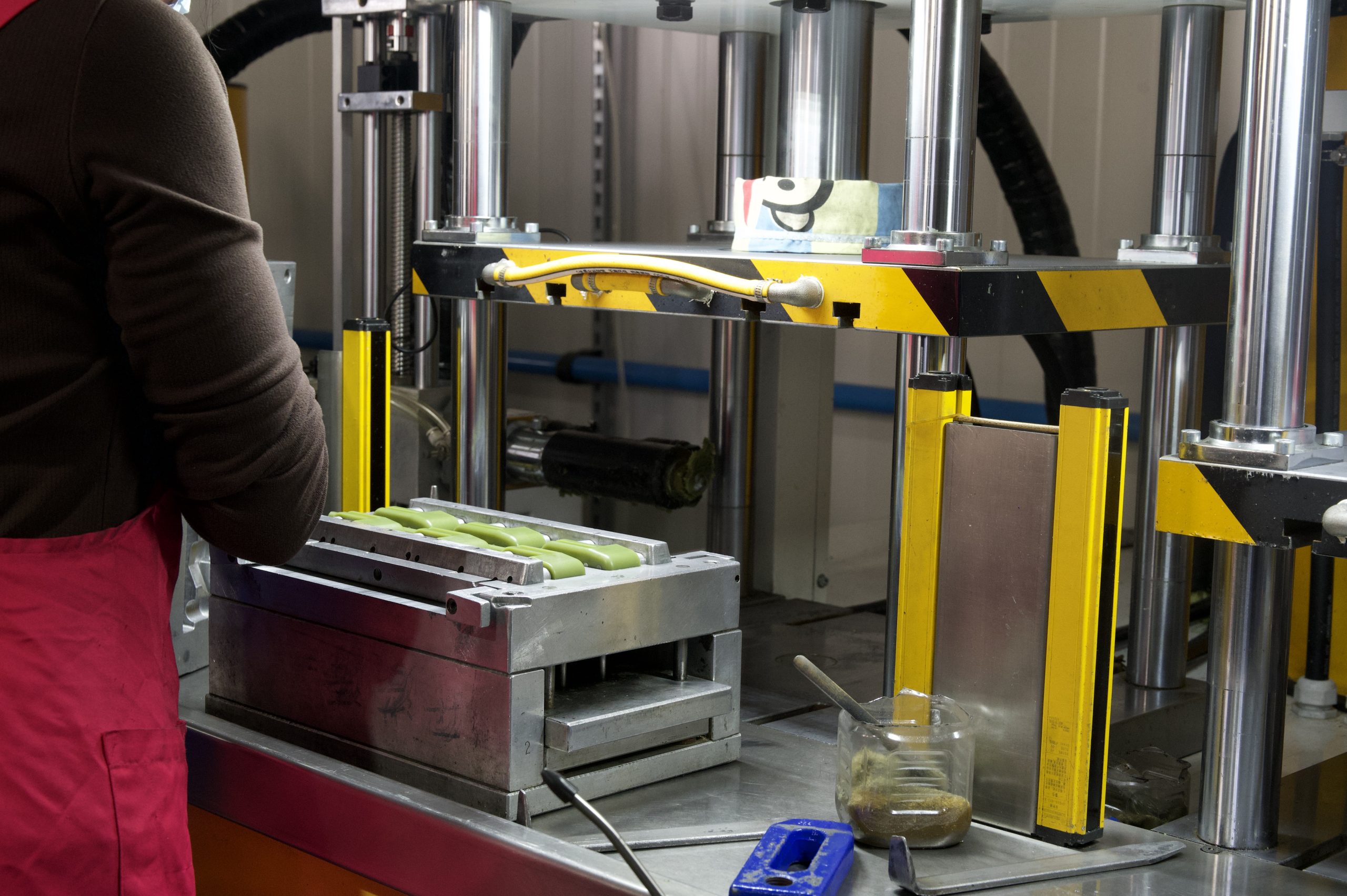

We operate 12 automated injection machines, including two large-format units for complex molds. As a result, we achieve high-volume production with consistent precision.

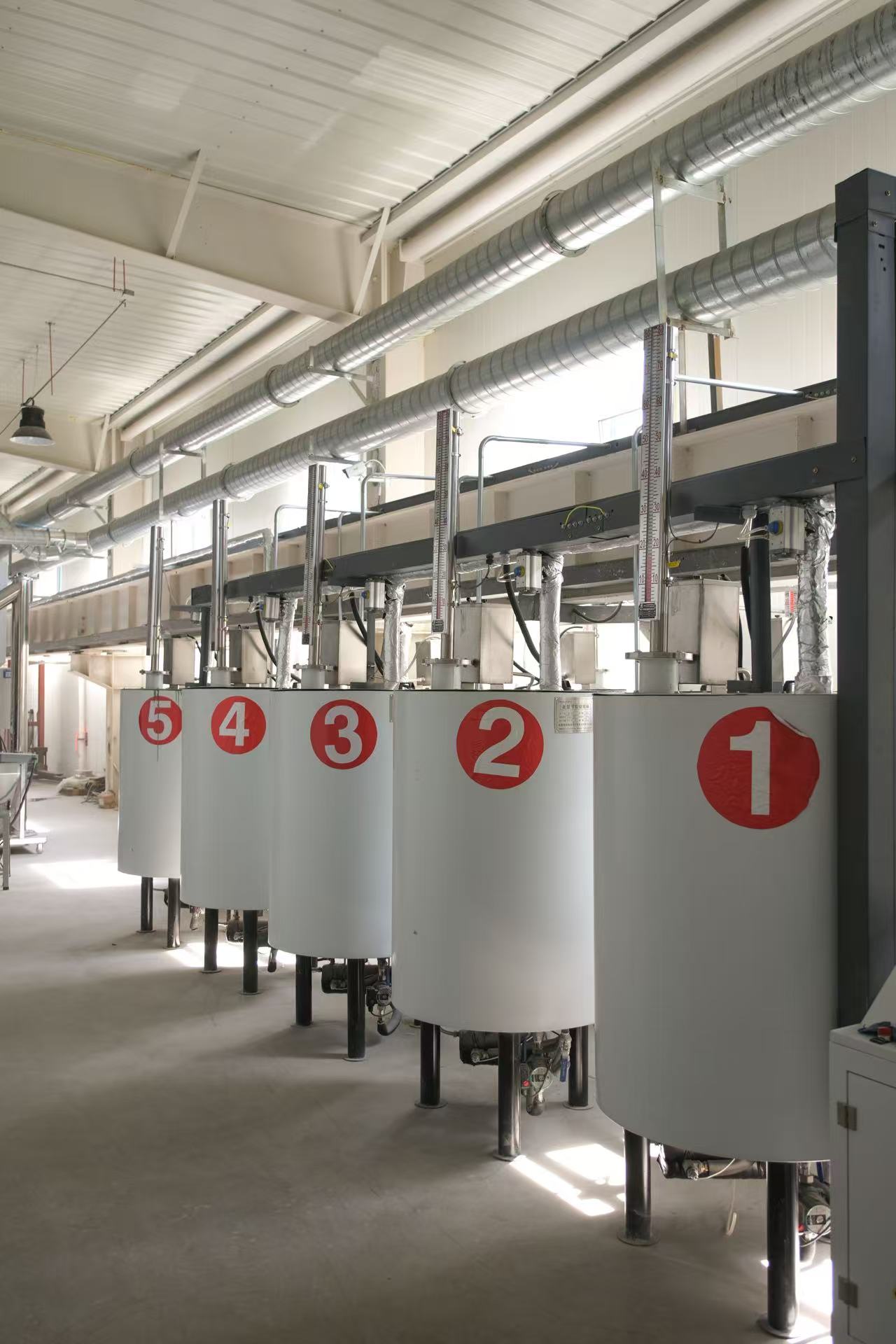

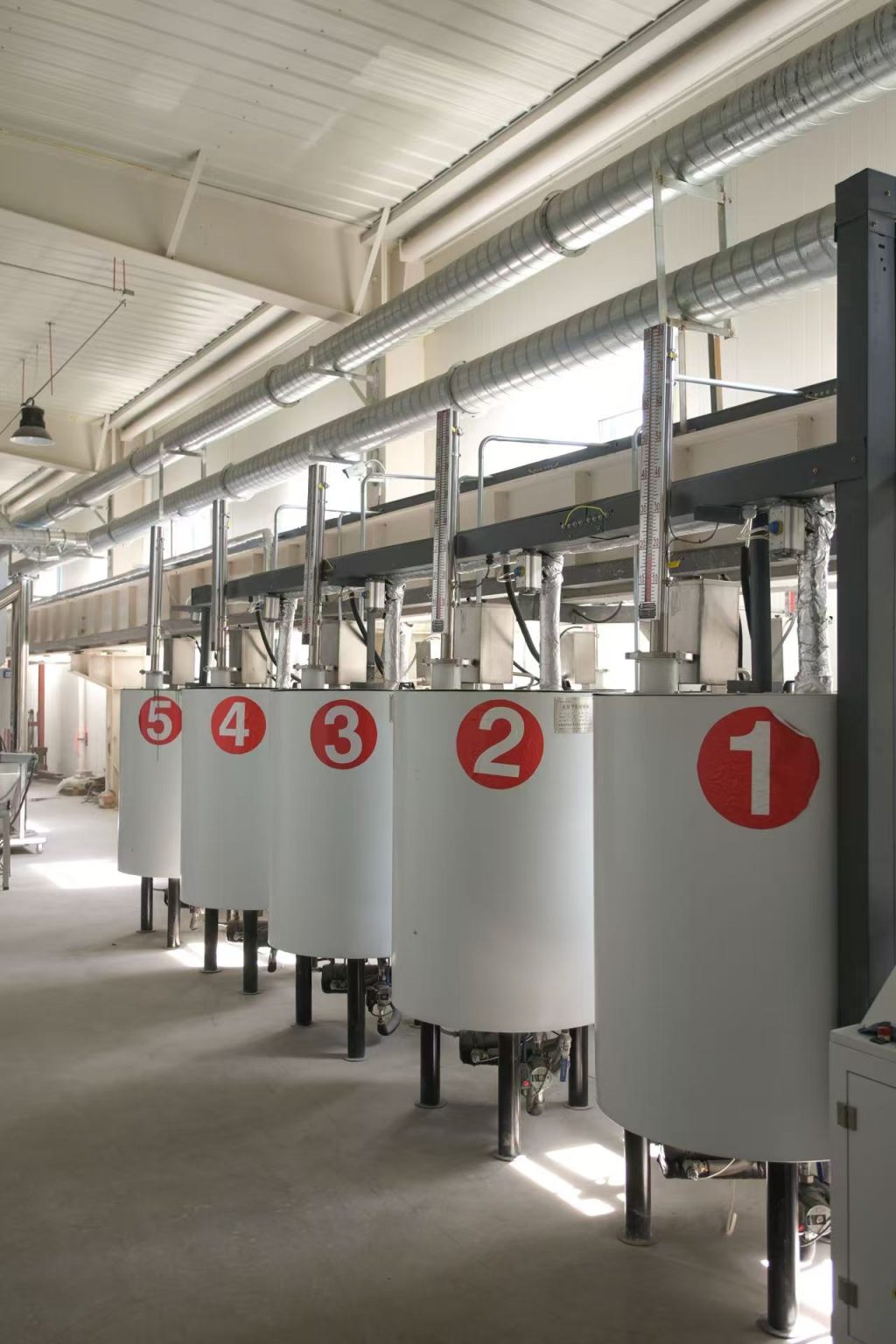

Fully Automated Wax Feeding System
We use a fully automated wax feeding system to maintain stable material properties. In addition, it removes variability caused by manual handling.
Climate-Controlled Wax Room
We keep temperature and humidity at a constant level in our wax room. Therefore, we ensure stable wax behavior and consistent dimensional accuracy.
Automated Cleaning System
We use a fully automatic suspension cleaning system to clean wax assemblies. As a result, we reduce manual labor and ensure complete cleaning without blind spots. In addition, this system prevents damage caused by collisions after assembly.
Skilled Craftsmanship

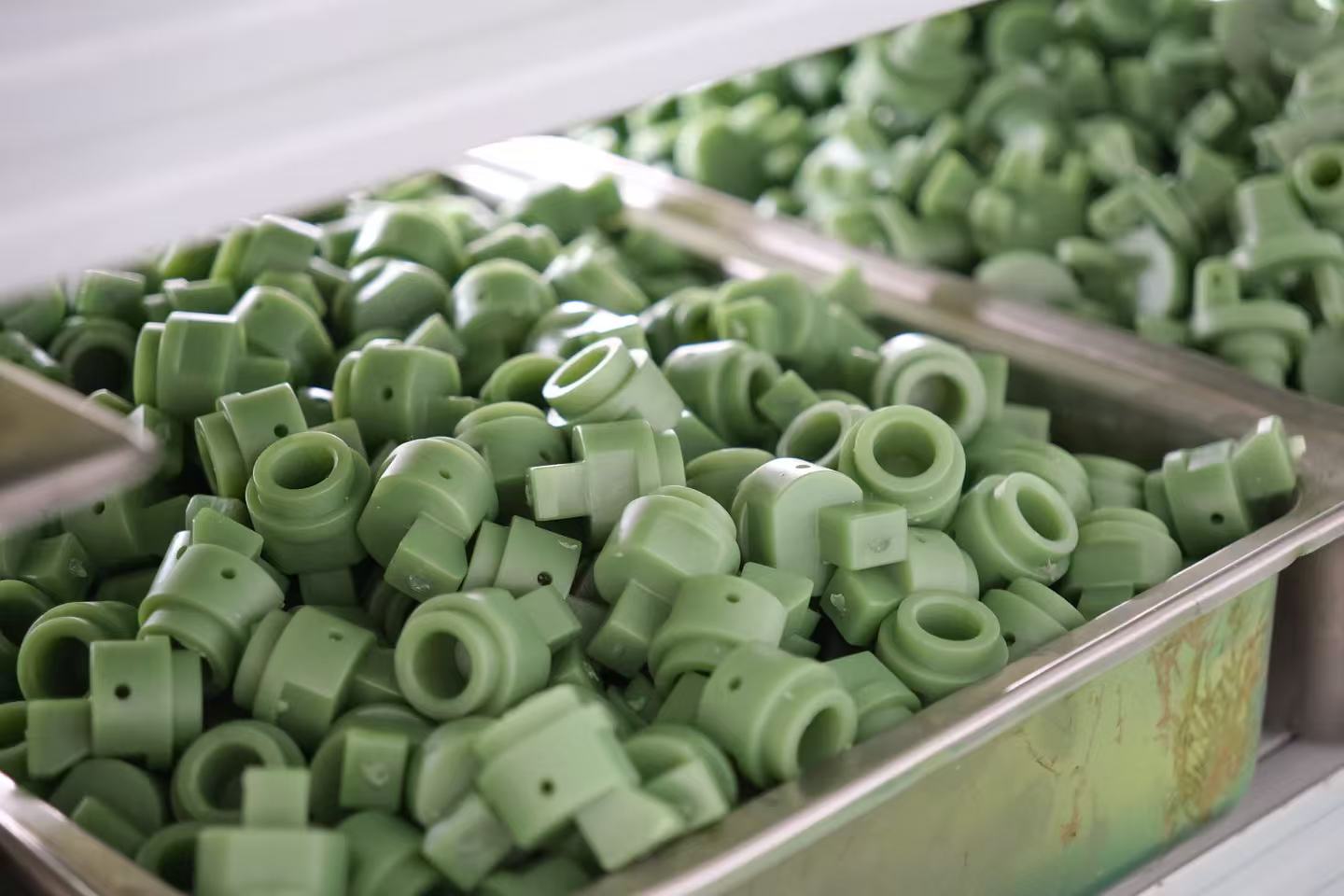

Our team has over 10 years of experience in wax finishing and assembly. We carefully refine each pattern and assemble clusters (trees) to improve casting yield and metal flow.
Quality Assurance
We inspect every wax pattern both visually and dimensionally. Then, we verify critical features using CMM or laser scanning. As a result, we ensure that all patterns meet design specifications before shell building.
Industry We Served in investment casting
FAQ
| Question | Answer |
|---|---|
| What is wax injection in investment casting? | Wax injection creates wax patterns for the investment casting process. First, we heat the wax. Then, we inject it into a precision mold. As a result, we get accurate replicas with fine details. |
| Why is wax assembly important? | Wax assembly connects multiple wax patterns into one tree structure. This allows us to cast several parts at the same time. Therefore, it improves efficiency and reduces production cost. |
| How does wax injection affect casting quality? | Wax injection directly affects casting quality. If we control the process well, we get stable dimensions and smooth surfaces. In addition, we reduce defects in the final metal parts. |
| What materials are used for wax patterns? | We use different types of wax materials. For example, paraffin wax and microcrystalline wax are common choices. These materials provide good stability and precision. |
| How many parts can be assembled in one wax tree? | The number depends on the size and design of the part. However, we usually assemble multiple components into one tree. This helps increase production efficiency. |
| Can wax patterns be reused? | Yes, we can reuse wax materials. After the process, we recycle the wax and use it again. As a result, the process becomes more cost-effective and environmentally friendly. |
