Shell Making in Investment Casting
Shell making is a key step in the investment casting process. In this stage, we build a strong ceramic shell around the wax pattern. This shell forms the mold that will hold molten metal during casting. As a result, it directly affects surface finish, strength, and dimensional accuracy.
This step is part of our Investment Casting Process.
What is Shell Making?
Shell making creates a ceramic mold by coating wax patterns with refractory materials.
First, we dip the wax assembly into a ceramic slurry. Then, we apply fine sand (stucco) to the surface. After that, we dry the layer under controlled conditions.
We repeat this process several times to build a strong and thick shell.

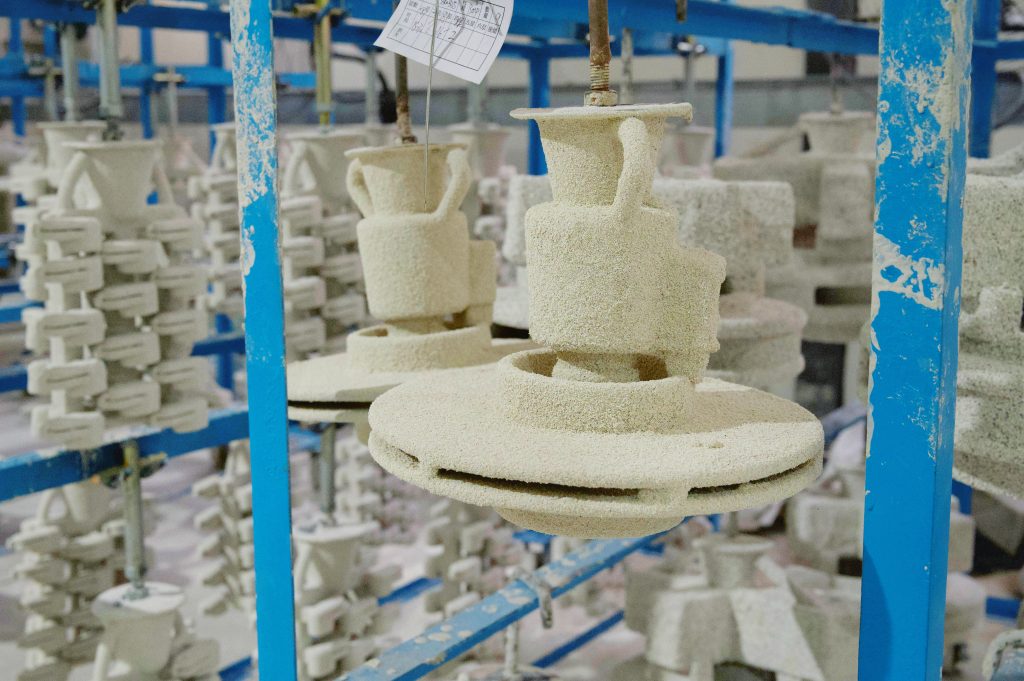

As a result, the shell becomes strong enough to withstand high temperatures during metal pouring.
Smart & Flexible Shell Making System
We combine advanced automation with skilled craftsmanship to build a flexible and reliable shell making system. As a result, we ensure consistent quality in high-volume production while maintaining the flexibility to handle complex casting requirements.
Automated Shell Making with ABB Robotics
We use advanced ABB robotic systems to automate the shell making process. First, the system handles slurry dipping, sand coating, rotation, and hanging. Then, multiple robotic arms work together to complete each step efficiently.
As a result, the system controls process parameters with high precision. It ensures that each ceramic layer has consistent thickness, density, and uniformity. In addition, it removes quality variation caused by manual operations.
Therefore, our automated system provides a stable and reliable foundation for large-scale production.
Expert Craftsmanship for Complex Castings
At the same time, we maintain a manual shell making unit for complex castings.
For parts with intricate structures, deep cavities, or dense features, our experienced technicians perform precise hand operations. First, they adjust coating techniques based on part geometry. Then, they ensure even slurry coverage in critical areas.
As a result, we improve coating quality in complex regions and reduce potential defects early in the process.
In addition, this approach supports rapid process validation and optimization during new product development.
FAQ
| Question | Answer |
|---|---|
| What is shell making in investment casting? | Shell making builds a ceramic mold around the wax pattern. First, we apply slurry and sand. Then, we repeat the process to create a strong shell. |
| Why is shell strength important? | A strong shell holds molten metal during casting. Therefore, it prevents cracks and ensures accurate parts. |
| How many layers are needed in shell making? | The number depends on part size and requirements. However, we usually apply multiple layers to ensure strength and stability. |
| What materials are used in shell making? | We use silica sol, zircon sand, and other refractory materials. These materials provide heat resistance and surface quality. |
| How do you prevent shell cracking? | We control drying conditions carefully. In addition, we maintain stable temperature and humidity to avoid stress and cracking. |
